Design progress along with time and ATHENAneo marks the new beginning on the evolution of all ‘free-floor’ systems. Reducing the amount of materials usage, ATHENAneo appears to be lighter than its predecessors, a slimmer and cleaner outlook is achieved whereby second glances on ATHENAneo are known to be a norm.






Doors All Doors shall be of 12mm thick HPL compact board with chamfered edge. Each will be supported by 3 Stainless Steel Hinges affixed to the pilaster, completed with Stainless Steel Coat Hook and Stainless Steel Door Knob.

Pilasters All Pilasters shall be of 12mm thick HPL compact board with chamfered edge, completed with Stainless Steel Thumbturn for locking doors.

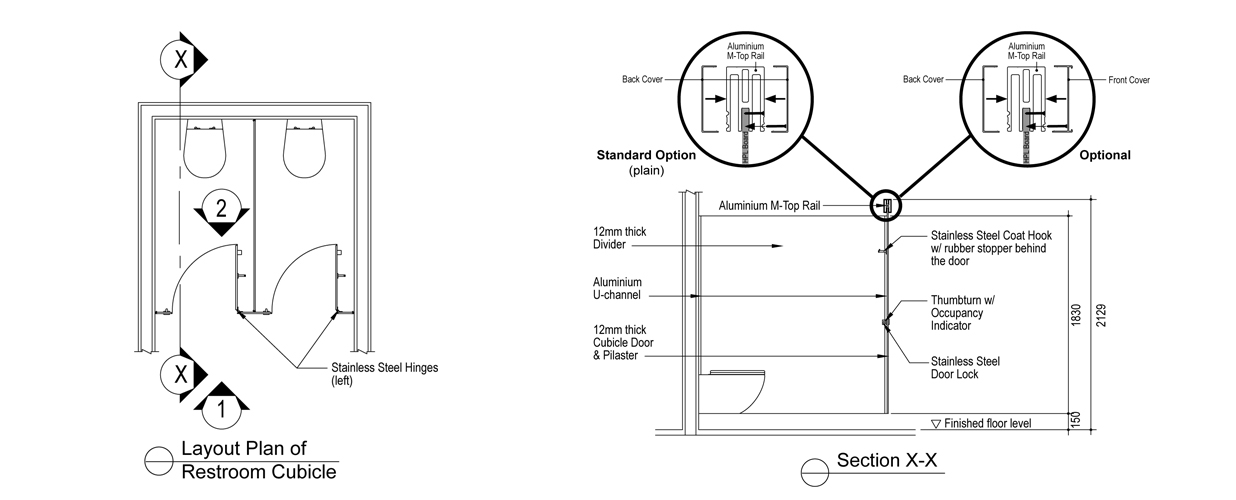

Top Rail Heavy-duty Aluminium M-section Top Rail Channel, approx. 85mm x 129mm x 7mm (cross-section dimension including covers, W x H x Thk), shall be anchored to the wall with Mild Steel Wall Bracket. Pilaster shall be section fixed onto the bottom slot of the Top Rail for maximum strength, stability and alignment of the system.

Intermediate Partitions All Intermediate Partitions shall be of 12mm thick HPL compact board with Aluminium U-channel, 25 x 16.5mm x 1.8mm (cross-section dimension, L x W x Thk), affixed at its ends (to the wall and pilaster).





Intermediate Partitions All Intermediate Partitions shall be of 12mm thick HPL compact board with Aluminium U-channel, 25 x 16.5mm x 1.8mm (cross-section dimension, L x W x Thk), affixed at its ends (to the wall and pilaster).

Accessories Each restroom cubicle will be equipped with the following accessories:

  • BESCO™ Stainless Steel Door Knob of Ø42mm with recess.
  • BESCO™ Stainless Steel Thumbturn with occupancy indicator.
  • BESCO™ Stainless Steel Coat Hook with rubber stopper allow loads up to 25 kg.
  • BESCO™ Stainless Steel Hinges with cover, adjustable from fully close to open at interval of 15°.

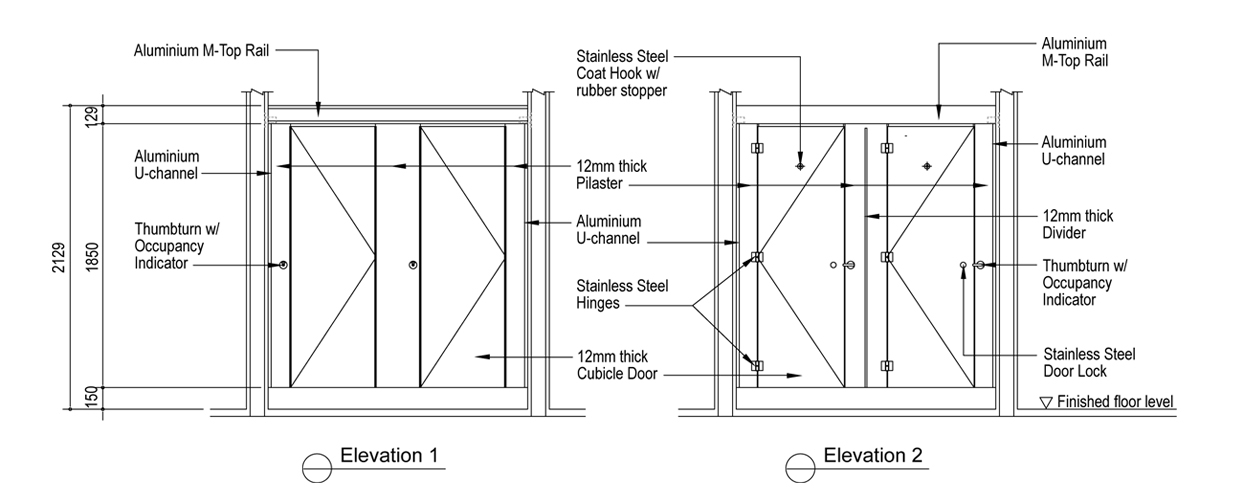

Compartment’s Dimension The recommended restroom cubicle size: 800 ~ 900mm by 1500 ~ 1800mm by 2129mm (W x D x H).

  • Visible height of restroom compartment measured from FFL to the top of the Top Rail is 2129mm.
  • Door size shall be between 600mm ~ 700mm in width.
  • Door size shall be between 800mm ~ 1000mm in width for ambulant restroom.

Colours BESCO™ recommends that the System shall be of a single colour. Colour differences from Doors, Pilasters and Intermediate Partitions are available upon request.

Installation Installation will be executed under the supervision of BESCO™’s site supervisor(s) and shall be carried out in accordance with BESCO™ installation instructions.

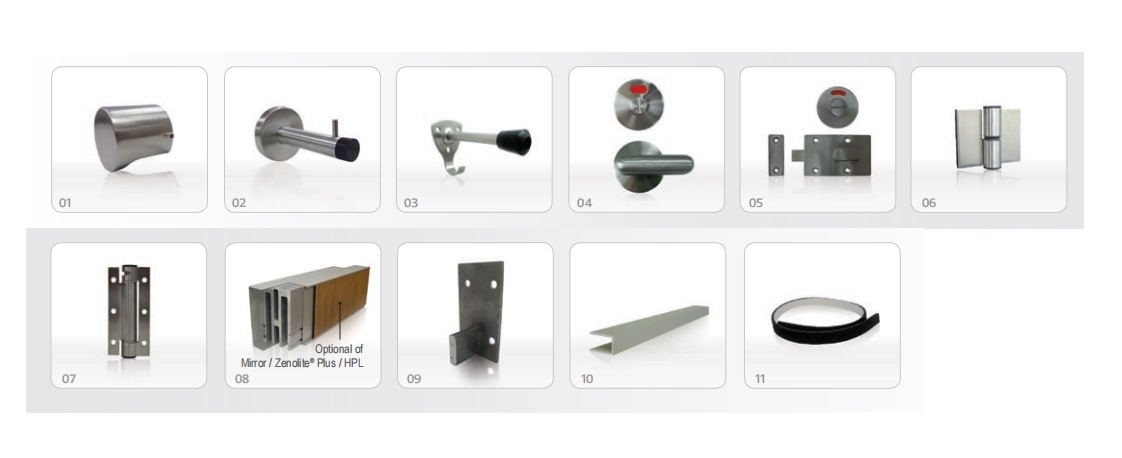

Part Numbers



1. SS Door Knob with recess (dia-42mm)

2. SS Coat Hook (w/cover)

3. SS Tri Base Coat Hook

4. SS Thumbturn (w/occupancy indicator)

5. SS Lock Set (w/occupancy indicator)

6. SS Hinges

7. SS Ambulant hinge

8. Alu M Top Rail with covers (5500mm)

9. Wall Bracket, M Top Rail

10. Alu U-channel (3660mm)

11. Black Rubber Sponge (1860mm)
